Coating coverage inspection

Coating coverage inspection is the process of verifying that 保形塗層 has been properly applied to all required areas of a PCB while avoiding restricted zones. It is a critical quality control step in PCB 組裝 和 SMT 組裝, ensuring that the coating provides effective protection without affecting functionality.

Purpose of coating coverage inspection

The main goal is to confirm that the coating:

• Fully covers all critical components and conductive areas
• Has no gaps, voids, or missed spots
• Does not contaminate connectors, test points, or switches
• Maintains uniform distribution across the board

在 交鑰匙 PCB 組裝, this inspection ensures that the final product meets reliability and performance standards.

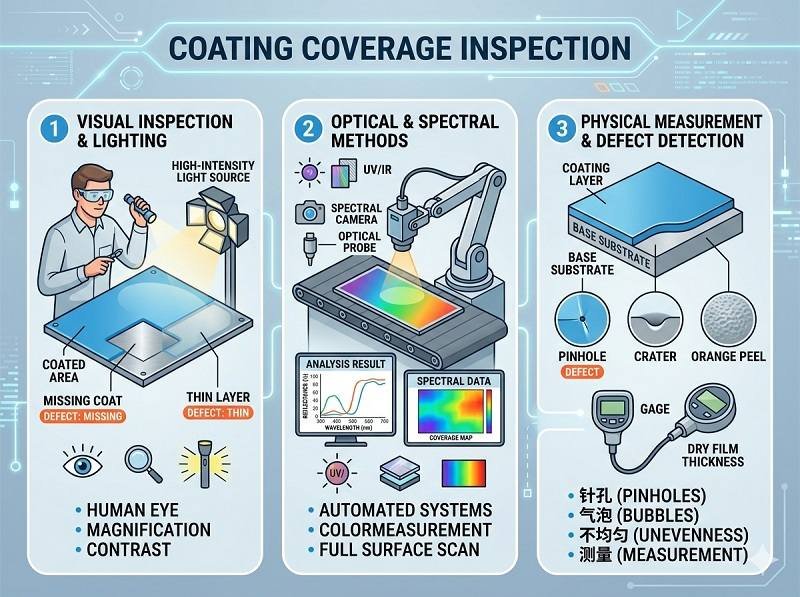

Common inspection methods

Several techniques are used to inspect coating coverage:

Visual inspection (manual or magnified)
Operators check the PCB under normal or magnified lighting to identify:

• Uneven coating
• Missed areas
• Excess buildup or pooling

UV light inspection
Many 保形塗層 materials include a UV tracer. Under UV light:

• Coated areas fluoresce clearly
• Missing or thin areas are easy to detect

This is one of the most widely used methods in SMT 組裝 線。.

自動光學檢測 (AOI)
Advanced systems use cameras and software to:

• Detect coating presence and uniformity
• Compare results with programmed standards
• Improve consistency in high-volume PCB 組裝

Thickness measurement tools
Used alongside coverage inspection to ensure correct coating thickness, especially in critical applications.

Common defects identified

Coating coverage inspection helps detect:

• Shadowing (uncoated areas under components)
• Bubbles or voids
• Overcoating on connectors or test pads
• 厚度不一致
• Contamination or debris under coating

Early detection prevents failures and costly rework in PCB 組裝.

Why it is important

Without proper inspection, even small coating defects can lead to:

• Moisture ingress
• Corrosion
• Electrical leakage or short circuits
• Reduced product lifespan

In high-reliability industries, coating coverage inspection is essential for ensuring product durability and compliance with standards.

總結

Coating coverage inspection is a vital quality assurance process that ensures 保形塗層 is applied correctly and effectively. In PCB 組裝, SMT 組裝, 以及 交鑰匙 PCB 組裝, it helps guarantee consistent protection, reduce defects, and improve overall product reliability.
