Solder Joint Inspection

Solder joint inspection is the process of examining solder connections on a printed circuit board to ensure they meet quality and reliability standards. It is a critical step in PCB 어셈블리, especially in SMT 어셈블리, where precise and reliable solder joints are essential for proper electrical and mechanical performance.

This inspection ensures that every connection between components and the PCB is correctly formed, free of defects, and capable of long-term operation.

Why Solder Joint Inspection Is Important

Solder joints are the foundation of all electronic connections.

Defective joints can lead to electrical failure, intermittent signals, or complete product malfunction. In high-reliability applications, poor soldering can cause serious safety and performance issues.

In PCB 제조 그리고 턴키 PCB 어셈블리, solder joint inspection helps detect problems early, reducing rework costs and improving product quality.

PCB 어셈블리 견적 받기

Common Solder Joint Defects

During inspection, several types of defects are typically identified.

• Cold solder joints (dull, weak connections)
• Solder bridges (short circuits between pads)
• Insufficient or excessive solder
• Voids within solder joints
• Tombstoning of small components
• Cracks or mechanical damage

Identifying these defects is essential in SMT 어셈블리 프로세스.

Methods of Solder Joint Inspection

Different inspection methods are used depending on the complexity of the PCB and component types.

Visual Inspection (Manual Inspection)

Operators visually check solder joints using magnification tools.

It is suitable for simple boards but depends on operator skill.

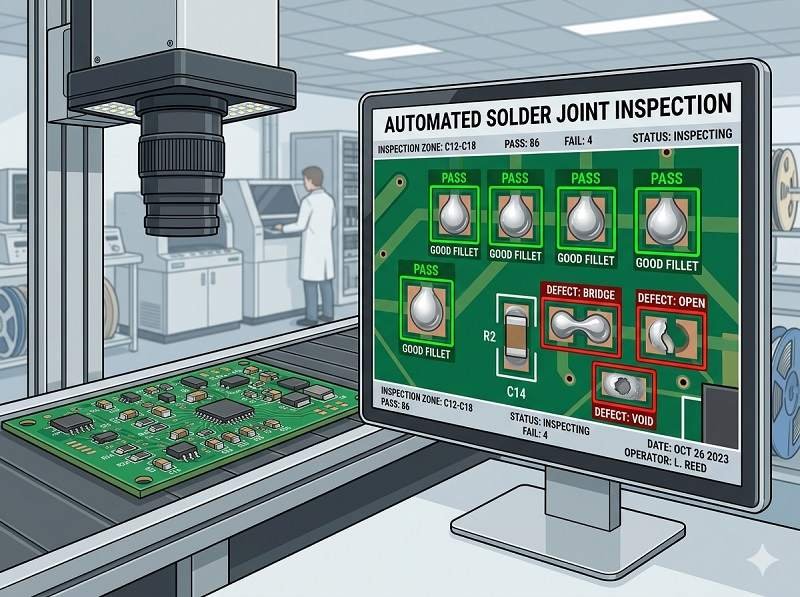

AOI(자동 광학 검사)

AOI systems use cameras to scan PCBs and detect defects automatically.

다음 분야에서 널리 사용됩니다. PCB 어셈블리 for high-speed and consistent inspection.

엑스레이 검사

X-ray systems are used to inspect hidden solder joints, such as BGAs and QFNs.

This method is essential for advanced SMT 어셈블리 where joints are not visible.

Microscopic Inspection

High-magnification microscopes are used for detailed analysis of critical areas.

Inspection Standards

Solder joint inspection is typically performed according to industry standards such as IPC-A-610.

These standards define acceptable and unacceptable solder joint conditions, ensuring consistency in PCB 제조 and assembly processes.

Role in SMT Assembly

In SMT 어셈블리, solder joint inspection is performed after reflow soldering.

It verifies that components are correctly soldered and that no defects were introduced during the process.

Inspection results may trigger rework or process adjustments.

Role in Turnkey PCB Assembly

In 턴키 PCB 어셈블리, solder joint inspection is integrated throughout the production process.

From initial assembly to final quality control, inspection ensures that all boards meet customer requirements and industry standards.

This improves overall product reliability and reduces failure rates.

Best Practices for Solder Joint Inspection

To achieve effective inspection, manufacturers should:

Use a combination of inspection methods (AOI, X-ray, manual).

Train operators according to IPC standards.

Implement inline inspection systems for real-time feedback.

Regularly calibrate inspection equipment.

Maintain proper documentation and traceability.

결론

Solder joint inspection is a vital quality control step in electronics manufacturing. It ensures that all solder connections are reliable, defect-free, and compliant with industry standards.

In PCB 어셈블리, SMT 어셈블리, 및 턴키 PCB 어셈블리, effective solder joint inspection plays a key role in delivering high-quality, durable, and reliable electronic products.
