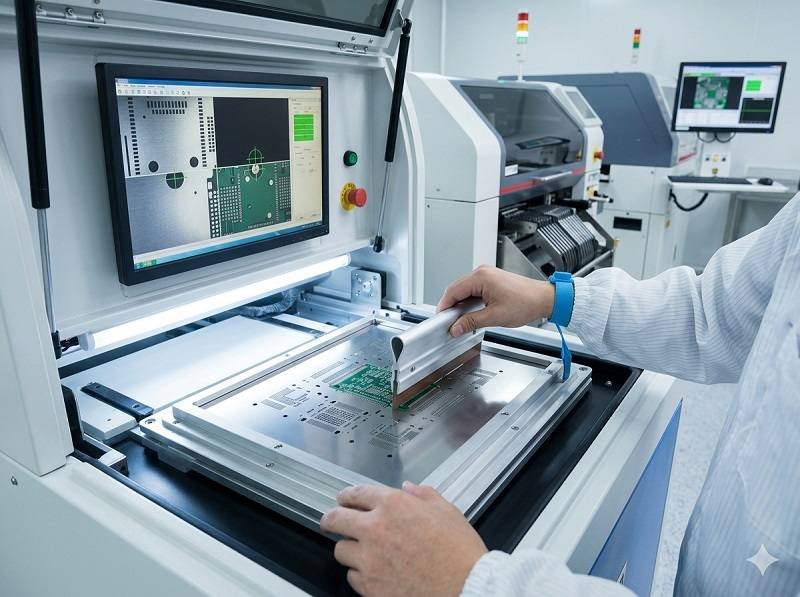

Stencil Printing Accuracy

Stencil printing accuracy refers to how precisely solder paste is deposited onto PCB pads during the solder paste printing stage of PCB 어셈블리. It is a critical factor in SMT 어셈블리, as it directly affects solder joint quality, component placement, and overall reliability.

High stencil printing accuracy ensures that the correct amount of solder paste is applied exactly where it is needed, without defects such as misalignment, insufficient paste, or bridging.

Why Stencil Printing Accuracy Matters

현대 PCB 제조, components are becoming smaller and more densely packed. This makes precise solder paste deposition essential.

Poor stencil printing accuracy can lead to:

• Solder bridges between pads
• Insufficient solder causing weak joints
• Tombstoning of small components
• Voids and inconsistent solder joints

These issues can significantly impact product quality in SMT 어셈블리 and increase rework costs in 턴키 PCB 어셈블리.

PCB 어셈블리 견적 받기

Key Factors Affecting Stencil Printing Accuracy

Several factors influence how accurately solder paste is printed.

Stencil Design

Stencil thickness, aperture size, and shape must match the PCB pad design.

A poorly designed stencil can result in too much or too little solder paste.

Solder Paste Quality

The viscosity and particle size of the solder paste affect how well it fills stencil apertures and releases onto pads.

Printer Alignment

Accurate alignment between the stencil and PCB is critical.

Modern printers use vision systems to ensure precise positioning during PCB 어셈블리.

Squeegee Pressure and Speed

Incorrect pressure or speed can cause uneven paste deposition or smearing.

환경 조건

Temperature and humidity can affect solder paste behavior and printing consistency.

Measurement of Stencil Printing Accuracy

Stencil printing accuracy is typically evaluated using inspection systems such as SPI (Solder Paste Inspection).

Key parameters include:

• Paste height
• Paste volume
• Paste area coverage
• Alignment offset

These measurements help ensure consistency across the entire PCB during SMT 어셈블리.

How to Improve Stencil Printing Accuracy

Manufacturers use several techniques to enhance accuracy.

Optimize stencil design for fine-pitch components.

Use high-quality solder paste with proper storage conditions.

Calibrate printing equipment regularly.

Implement automated inspection systems like SPI.

Maintain stable environmental conditions in the production area.

Role in SMT Assembly

Stencil printing is the first step in SMT 어셈블리, making its accuracy crucial.

Any error at this stage will carry through reflow soldering and affect final product quality.

Accurate printing ensures reliable solder joints and reduces defects throughout the process.

Importance in Turnkey PCB Assembly

In 턴키 PCB 어셈블리, stencil printing accuracy plays a major role in achieving high yield and consistent quality.

Since the entire process—from PCB 제조 to final assembly—is managed as a whole, precise solder paste printing helps minimize defects and improve efficiency.

결론

Stencil printing accuracy is a key factor in ensuring high-quality PCB Assembly. It directly impacts solder joint reliability, component placement, and overall product performance.

By optimizing stencil design, controlling process parameters, and using advanced inspection methods, manufacturers can achieve consistent and reliable results in SMT 어셈블리 그리고 턴키 PCB 어셈블리.
