UV inspection for coating

UV inspection for coating is a quality control method used to verify the presence, coverage, and uniformity of Conformal Coating on a PCB using ultraviolet (UV) light. It is widely applied in PCB Assembly and SMT Assembly because it provides a fast, reliable, and non-destructive way to detect coating defects.

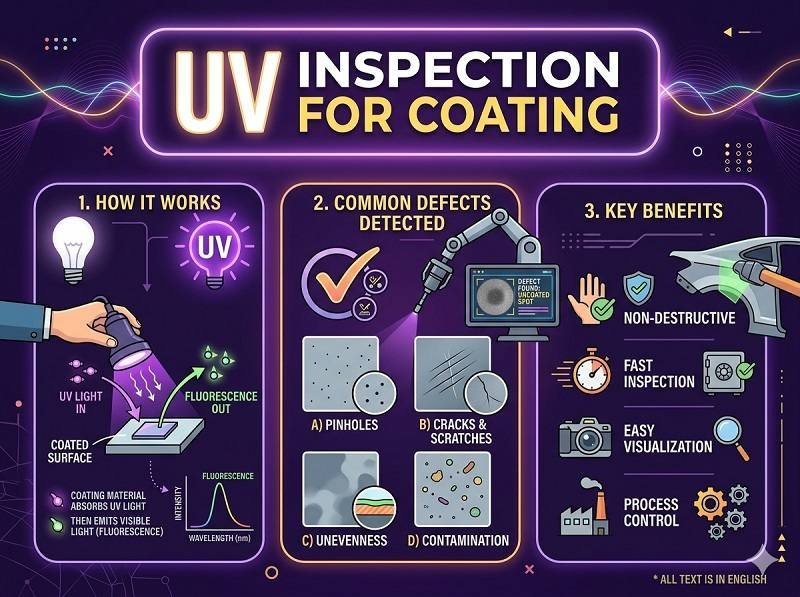

How UV inspection works

Most Conformal Coating materials used in manufacturing contain a UV fluorescent tracer. Under normal lighting, the coating may be transparent and difficult to see. However, when exposed to UV light:

• Coated areas glow or fluoresce
• Uncoated or thin areas appear dark
• Excess coating becomes highly visible

This makes it easy for operators or automated systems to quickly assess coating quality during Turnkey PCB Assembly.

What UV inspection checks

UV inspection helps identify several key issues:

• Incomplete coverage (missed areas)
• Uneven coating thickness
• Overcoating on connectors or test points
• Shadowing effects under components
• Bubbles, voids, or contaminants

In high-density SMT Assembly, this method is especially useful for detecting hidden defects that are difficult to see with the naked eye.

Advantages of UV inspection

• Fast and efficient → suitable for high-volume production
• Non-destructive → does not damage the PCB or coating
• High visibility → clearly highlights coating boundaries
• Easy integration → works with both manual and automated inspection systems

Because of these benefits, UV inspection is a standard step in many PCB Assembly lines.

Limitations to consider

• Requires coatings with UV tracer additives
• Cannot precisely measure coating thickness (often combined with other methods)
• May not fully reveal defects under very dense components

To overcome these limitations, UV inspection is often combined with AOI or thickness measurement in Turnkey PCB Assembly processes.

Applications of UV inspection

UV inspection is commonly used in:

• Consumer electronics
• Automotive electronics
• Industrial control systems
• Medical devices
• Aerospace electronics

In all these fields, ensuring correct Conformal Coating application is essential for long-term reliability.

Conclusion

UV inspection is a simple yet powerful method for verifying Conformal Coating quality. By making the coating visible under UV light, it allows manufacturers to quickly detect defects and ensure proper coverage. In PCB Assembly, SMT Assembly, and Turnkey PCB Assembly, UV inspection plays a key role in maintaining consistent quality and improving product reliability.
