AOI inspection for coating

AOI (Automated Optical Inspection) for coating is an advanced inspection method used to automatically check the quality, coverage, and consistency of Conformal Coating on PCBs. It is widely used in modern PCB Assembly and SMT Assembly lines to ensure high accuracy, repeatability, and efficiency in quality control.

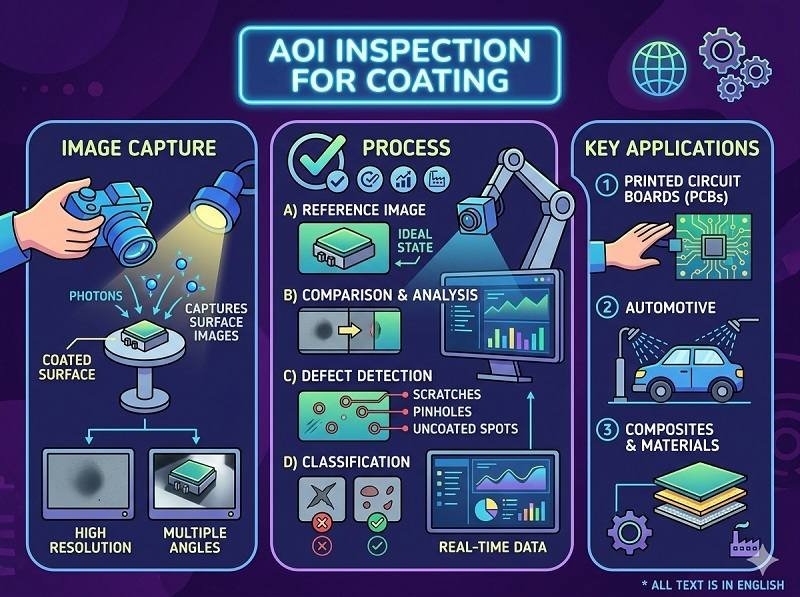

How AOI inspection works

In coating inspection, AOI systems use high-resolution cameras, lighting (often including UV light), and image-processing software to analyze the PCB surface. The system compares captured images with predefined standards or CAD data to determine whether the Conformal Coating has been applied correctly.

In many Turnkey PCB Assembly processes, AOI is integrated inline, allowing real-time inspection immediately after coating.

What AOI checks in conformal coating

AOI inspection can detect a wide range of coating-related issues:

• Missing coating areas (insufficient coverage)
• Excess coating (over-application on connectors or pads)
• Uneven distribution
• Shadowing under components
• Bubbles, voids, or contamination
• Incorrect coating boundaries

This makes AOI especially valuable in high-density SMT Assembly, where manual inspection may not be sufficient.

Advantages of AOI inspection

• High accuracy and consistency → eliminates human error
• Fast inspection speed → suitable for high-volume production
• Automated process → reduces labor costs
• Data recording and traceability → useful for quality tracking
• Inline integration → immediate feedback for process control

In large-scale PCB Assembly, AOI significantly improves defect detection and overall yield.

AOI vs UV inspection

• UV inspection
  • Simple and low cost
  • Relies on human visual checking
  • Good for basic coverage verification
• AOI inspection
  • Fully automated and more precise
  • Can quantify defects and compare against standards
  • Better for complex and high-reliability applications

In many Turnkey PCB Assembly lines, both methods are used together for optimal results.

Limitations of AOI inspection

• Higher equipment cost
• Requires programming and setup for each PCB design
• May struggle with very complex 3D geometries or hidden areas

Despite these limitations, AOI remains one of the most effective inspection tools in advanced SMT Assembly.

Conclusion

AOI inspection for coating is a powerful automated solution for ensuring proper Conformal Coating application. By detecting defects quickly and accurately, it enhances quality control in PCB Assembly, SMT Assembly, and Turnkey PCB Assembly, helping manufacturers deliver reliable and consistent electronic products.
