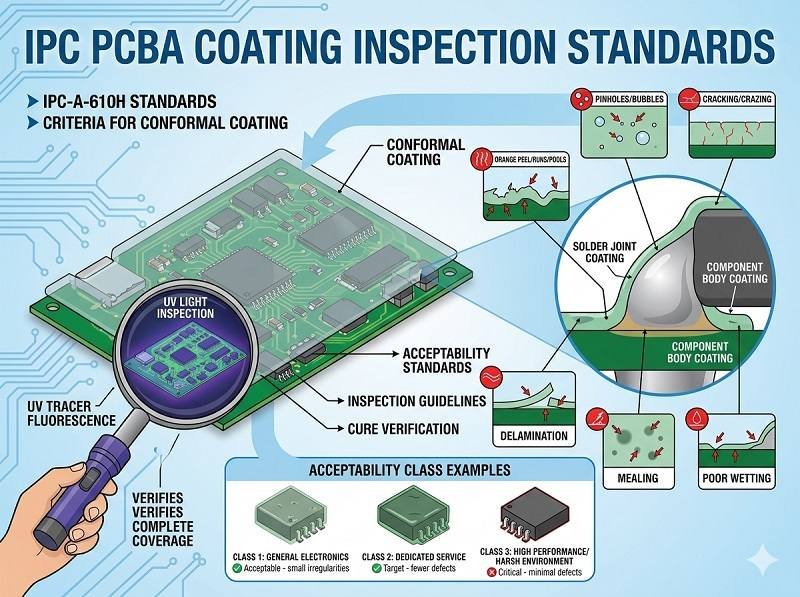

IPC coating inspection standard

The IPC coating inspection standard refers to a set of guidelines developed by IPC (Association Connecting Electronics Industries) to ensure the quality, performance, and reliability of Conformal Coating in PCB Assembly and SMT Assembly. These standards define how coatings should be applied, inspected, and accepted in electronics manufacturing.

Key IPC standards for coating inspection

Several IPC standards are commonly used for Conformal Coating inspection:

IPC-A-610 (Acceptability of Electronic Assemblies)

• Provides visual acceptance criteria for coated PCBs
• Defines acceptable and non-acceptable coating conditions
• Widely used in PCB Assembly quality inspection

IPC-CC-830 (Qualification and Performance of Electrical Insulating Compounds)

• Specifies requirements for coating materials
• Covers performance, environmental resistance, and reliability
• Ensures coating materials meet industry standards

IPC-TM-650 (Test Methods Manual)

• Includes test methods for evaluating coatings
• Covers adhesion, thickness, insulation resistance, and more

What IPC inspection focuses on

IPC standards define clear criteria for evaluating Conformal Coating quality:

Coverage

• Coating should fully cover required areas
• No exposed conductive surfaces unless specified

Thickness

• Must meet specified range depending on coating type
• Too thin → insufficient protection
• Too thick → potential mechanical or electrical issues

Uniformity

• Smooth and even coating layer
• No excessive pooling or runs

Defects
Inspectors look for:

• Bubbles and voids
• Cracks or delamination
• Pinholes
• Contamination

Inspection methods defined by IPC

In SMT Assembly, IPC standards recommend multiple inspection techniques:

• Visual inspection (manual or magnified)
• UV light inspection (for fluorescent coatings)
• Thickness measurement tools
• Adhesion testing (e.g., cross-hatch test)

These methods ensure consistent quality control.

Acceptance criteria levels

IPC standards often define different acceptance classes:

• Class 1: General electronic products
• Class 2: Dedicated service electronics
• Class 3: High-reliability products (automotive, medical, aerospace)

Higher classes require stricter Conformal Coating inspection standards in PCB Assembly.

Importance of IPC standards

Following IPC coating inspection standards ensures:

• Consistent product quality
• Improved reliability and lifespan
• Compliance with industry requirements
• Reduced risk of failure in harsh environments

Final conclusion

The IPC coating inspection standard provides essential guidelines for evaluating Conformal Coating quality in PCB Assembly and SMT Assembly. By following standards such as IPC-A-610, IPC-CC-830, and IPC-TM-650, manufacturers can ensure coatings meet strict performance and reliability requirements.
