Coating process validation

Coating process validation is a systematic procedure used to confirm that the Conformal Coating process in PCB Assembly and SMT Assembly consistently produces reliable, high-quality results. It ensures that the coating application, curing, and inspection processes meet predefined requirements and industry standards.

Purpose of coating process validation

The main goal is to verify that the Conformal Coating process is stable, repeatable, and capable of delivering consistent protection.

Key objectives:

• Ensure uniform coating thickness and coverage
• Verify strong adhesion to PCB surfaces
• Confirm proper curing and material performance
• Minimize defects and process variation

Validation is especially important in high-reliability PCB Assembly applications such as automotive, medical, and industrial electronics.

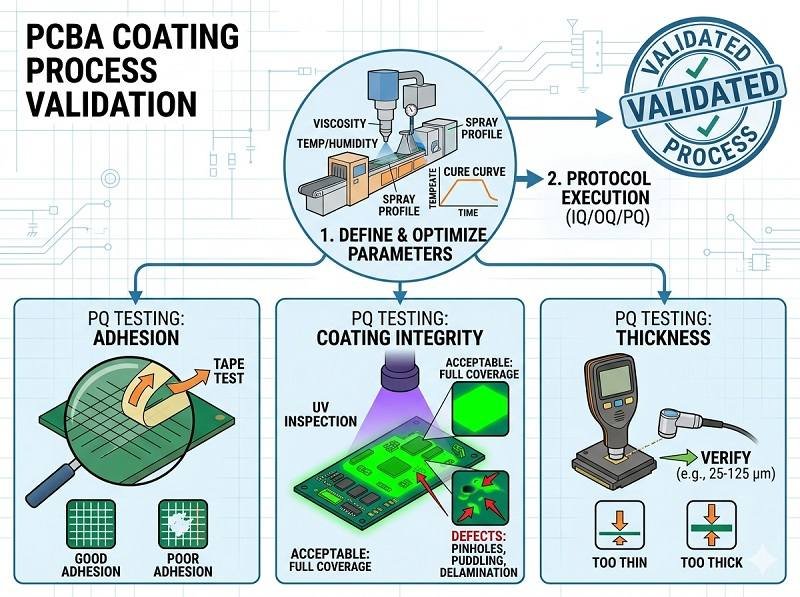

Key stages of validation

Process definition

• Define coating method (spray, dip, selective)
• Select coating material and parameters
• Establish acceptance criteria

Installation Qualification (IQ)

• Verify equipment is installed correctly
• Ensure machines meet manufacturer specifications

Operational Qualification (OQ)

• Test process parameters (speed, pressure, viscosity)
• Identify optimal operating conditions

Performance Qualification (PQ)

• Run production samples under normal conditions
• Confirm consistent quality over multiple batches

These stages are widely used in controlled SMT Assembly environments.

Parameters validated in coating process

During validation, several critical factors are evaluated:

• Coating thickness and uniformity
• Coverage and masking accuracy
• Adhesion strength
• Curing time and temperature
• Environmental conditions (humidity, cleanliness)

All parameters must remain stable to ensure reliable Conformal Coating performance.

Testing methods used

Validation includes multiple inspection and test methods:

• Visual and UV inspection
• Thickness measurement
• Adhesion testing (cross-hatch test)
• Electrical testing (insulation resistance)
• Environmental stress testing

These tests confirm the robustness of the PCB Assembly coating process.

Documentation and control

Proper documentation is essential for validation:

• Process parameters and settings
• Test results and acceptance criteria
• Work instructions and SOPs
• Traceability records

This ensures repeatability and compliance in SMT Assembly production.

Benefits of process validation

• Improved product reliability
• Reduced defects and rework
• Consistent coating quality
• Compliance with IPC and industry standards
• Increased customer confidence

Final conclusion

Coating process validation is a crucial quality assurance step in PCB Assembly and SMT Assembly. By verifying that the Conformal Coating process is controlled, stable, and repeatable, manufacturers can ensure long-term protection and reliability of electronic products.
