Types of Conformal Coatings
In modern electronics manufacturing, protecting circuit boards from environmental damage is essential for ensuring long-term reliability. During Montering av kretskort, especially in harsh environments such as automotive, industrial, or outdoor applications, applying a protective layer is a common practice. This protective layer is known as Conformal Coating, and it plays a critical role in extending the lifespan of electronic products.
Conformal coatings are thin polymeric films applied to printed circuit boards to protect against moisture, dust, chemicals, and temperature variations. In both Montering av kretskort och SMT-montering processes, choosing the right type of coating is vital for performance and durability.
Acrylic Coatings
Acrylic coatings are one of the most widely used types of conformal coatings due to their affordability and ease of application. They provide good moisture resistance and are easy to remove for repair or rework. This makes them a popular choice in SMT-montering environments where rework flexibility is important. However, they offer limited chemical resistance compared to other options.
Silicone Coatings
Silicone coatings are known for their excellent performance in extreme temperatures. They remain stable in both high and low temperature conditions, making them ideal for automotive and aerospace electronics. During Montering av kretskort, silicone coatings are often selected for applications exposed to thermal stress. Additionally, they offer good moisture and humidity resistance.

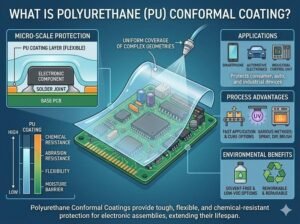

Polyurethane (Urethane) Coatings
Polyurethane coatings provide superior chemical resistance and abrasion protection. They are commonly used in environments where the PCB may be exposed to solvents or corrosive substances. In SMT-montering, these coatings are preferred when durability is a top priority. However, they are more difficult to remove, which can complicate repairs.

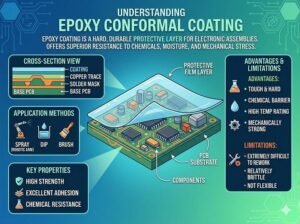

Epoxy Coatings
Epoxy coatings offer excellent adhesion and strong resistance to moisture and chemicals. They form a very hard protective layer, making them suitable for rugged environments. However, their rigidity can be a disadvantage in applications where the board may experience vibration or thermal expansion. In Montering av kretskort, epoxy coatings are typically used when maximum protection is required and rework is not a concern.
Parylene Coatings
Parylene is a high-performance konform beläggning applied through a vapor deposition process. It provides uniform coverage, even in hard-to-reach areas, and offers exceptional moisture and chemical resistance. Although more expensive, it is widely used in medical and aerospace industries. For high-end SMT-montering applications, parylene ensures unmatched protection and reliability.

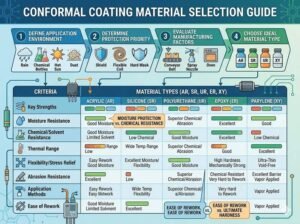

Choosing the Right Conformal Coating
Selecting the appropriate coating depends on several factors, including operating environment, budget, and repair requirements. For example, acrylic coatings are suitable for cost-sensitive projects, while parylene is ideal for mission-critical applications. During both Montering av kretskort och SMT-montering, manufacturers must balance performance, cost, and manufacturability.
