Conformal coating rework process

The conformal coating rework process refers to the controlled removal, repair, and reapplication of Conformal Coating on a PCB when defects, design changes, or component replacements are required. It is an important step in PCB Assembly and SMT Assembly, ensuring that boards can be corrected without compromising reliability.

Why rework is needed

Rework may be required in Turnkey PCB Assembly for several reasons:

• Coating defects (bubbles, voids, uneven thickness)
• Contamination trapped under the coating
• Incorrect masking or overcoating of connectors
• Component repair or replacement
• Engineering changes or design updates

Without proper rework, these issues could lead to functional failure or reduced lifespan.

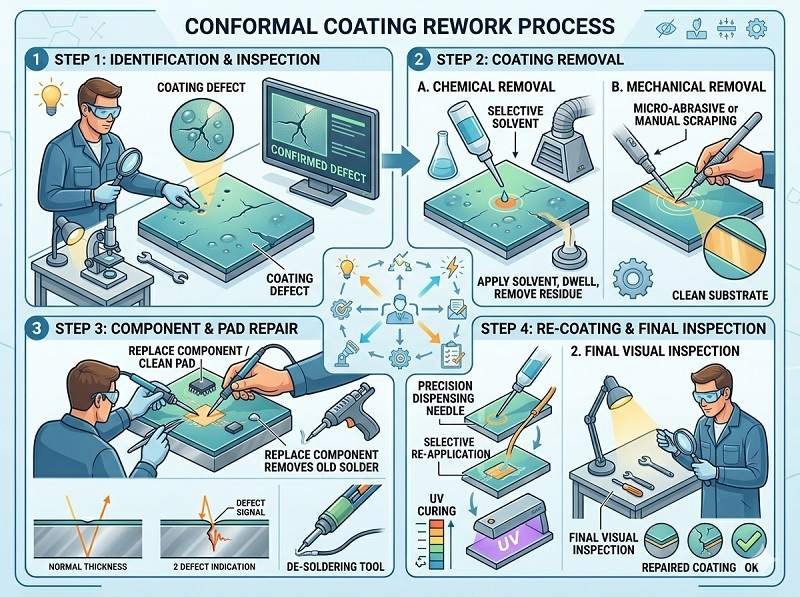

Steps in conformal coating rework

Coating identification
First, identify the type of Conformal Coating used (acrylic, silicone, urethane, epoxy, or parylene), as each requires a different removal method.

Coating removal
Common removal techniques include:

• Solvent removal → dissolves acrylic coatings
• Mechanical removal → scraping or micro-abrasion
• Thermal methods → softening coating with heat
• Chemical stripping → used for tougher coatings like epoxy

The method must be chosen carefully to avoid damaging components or traces during PCB Assembly repair.

Cleaning the PCB
After removal:

• Clean residues using appropriate solvents
• Ensure the surface is free of contaminants
• Dry the board completely before further processing

Proper cleaning is critical before re-coating in SMT Assembly.

Repair or replacement
Perform necessary actions such as:

• Replacing faulty components
• Fixing solder joints
• Modifying circuit areas

This step follows standard repair procedures in Turnkey PCB Assembly.

Reapplication of coating
Once repairs are complete:

• Reapply Conformal Coating using brush, spray, or selective coating
• Ensure proper masking of no-coat areas
• Maintain correct thickness and coverage

Curing and final inspection
Finally:

• Cure the coating (air dry, heat, or UV depending on material)
• Inspect using UV or AOI methods
• Verify coverage, adhesion, and thickness

Challenges in rework

• Risk of damaging sensitive components
• Difficulty removing certain coatings (e.g., epoxy or parylene)
• Maintaining consistent coating quality after rework
• Time and labor costs

Because of these challenges, rework should be minimized through proper process control in PCB Assembly.

Best practices

• Use rework-friendly coatings (e.g., acrylic) when possible
• Design for accessibility in PCB layout
• Apply proper masking during initial coating
• Train technicians on safe removal techniques

Conclusion

The conformal coating rework process is essential for correcting defects and enabling repairs in PCB Assembly, SMT Assembly, and Turnkey PCB Assembly. By carefully removing, repairing, and reapplying the coating, manufacturers can maintain product quality while reducing waste and cost.
