BGA solder inspection in modern PCB manufacturing

Ball Grid Array (BGA) components are widely used in modern electronics because they allow high-density connections and better electrical performance in compact designs. However, inspecting BGA solder joints is much more complex than traditional components because the solder joints are hidden underneath the package.

Dans les pays modernes Assemblage du circuit imprimé, especially in high-density products, BGA inspection has become a critical part of quality control. The same applies to Prototype d'assemblage de circuits imprimés, where early-stage testing helps identify process or design issues before mass production. In large-scale Fabrication de circuits imprimés, consistent inspection ensures product stability and long-term reliability.

Why BGA solder joint inspection is critical

The biggest issue with BGA components is that defects are not visible from the outside. Unlike traditional solder joints, BGA connections cannot be checked with simple visual inspection after reflow.

Common problems include voids inside solder balls, cold solder joints, bridging, misalignment, and head-in-pillow defects. These issues may not appear immediately but can lead to serious failures during operation.

This is why in Assemblage SMT, BGA inspection is considered a mandatory quality control step rather than an optional process.

Challenges in inspecting BGA solder joints

The main challenge is obvious: the solder joints are completely hidden under the component. This makes traditional optical inspection ineffective.

Dans les pays modernes Fabrication de circuits imprimés, additional challenges include miniaturization of components, high-density layouts, lead-free solder behavior, and multilayer PCB structures. All of these factors make BGA inspection more complex and require advanced detection methods instead of simple visual checks.

Obtenir un devis pour l'assemblage de circuits imprimés

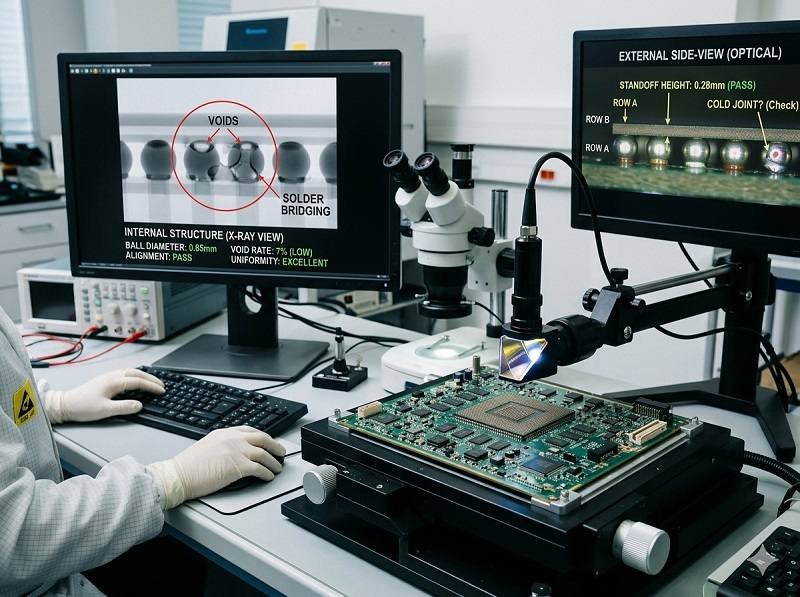

X-ray inspection for BGA solder joints

X-ray inspection is the most widely used and reliable method for BGA analysis in Assemblage du circuit imprimé.

2D X-ray inspection

2D X-ray provides a flat image of the solder joints and is commonly used on production lines. It is effective for detecting voids, missing solder balls, bridging issues, and general alignment problems.

En Assemblage SMT, this method is widely used because it is fast and suitable for high-volume inspection.

3D X-ray (CT inspection)

3D X-ray, also known as CT scanning, provides a more detailed internal view of the solder structure. It is widely used in high-reliability Fabrication de circuits imprimés environnements.

This method can detect more advanced defects such as head-in-pillow, internal cracks, and uneven void distribution. In Prototype d'assemblage de circuits imprimés, it is especially useful for validating new designs and improving process parameters.

AOI in SMT assembly and its limitations

Automated Optical Inspection (AOI) is a standard process in most Assemblage SMT lines. It plays an important role in detecting placement and surface-level issues.

AOI can check component alignment, missing parts, polarity issues, and solder paste quality before reflow. However, it cannot inspect the actual BGA solder joints because they are hidden under the package.

Therefore, in Assemblage du circuit imprimé, AOI is always combined with X-ray inspection to achieve complete coverage.

Microsection analysis for failure investigation

When deeper analysis is required, microsectioning is used. This is a destructive method where the PCB is physically cut to examine solder joints under a microscope.

En Fabrication de circuits imprimés, this method is used for failure analysis, root cause investigation, and studying solder joint structure. It is especially valuable in Prototype d'assemblage de circuits imprimés, where engineers need detailed feedback during development.

Electrical testing for BGA reliability

Inspection alone is not enough. Electrical testing is also required to ensure the board works correctly in real conditions.

En Assemblage du circuit imprimé, common testing methods include in-circuit testing (ICT), functional testing (FCT), burn-in testing, and thermal cycling tests. These methods help detect hidden electrical failures that cannot be seen through imaging alone.

Common BGA defects and how they are detected

Different inspection methods are used depending on the type of defect.

Voids are typically detected using X-ray inspection. Bridging issues can be identified through both X-ray and AOI. Head-in-pillow defects require 3D X-ray analysis. Cold solder joints are usually found through functional testing. Misalignment issues can be detected early by AOI before reflow.

By combining multiple methods, Assemblage SMT processes can significantly improve product reliability.

Process control to prevent BGA defects

Good inspection is important, but preventing defects in the first place is even more critical.

En Fabrication de circuits imprimés, manufacturers focus on process optimization such as solder paste printing accuracy, reflow temperature control, PCB pad design, component storage conditions, and clean production environments.

En Prototype d'assemblage de circuits imprimés, these parameters are often adjusted repeatedly to achieve stable production results before scaling up.

Conclusion

BGA solder joint inspection is a key part of modern electronics manufacturing. Since defects are hidden, manufacturers must rely on a combination of X-ray inspection, AOI support, electrical testing, and process optimization.

En Assemblage du circuit imprimé, Prototype d'assemblage de circuits imprimés, Assemblage SMT, et Fabrication de circuits imprimés, a well-designed inspection strategy ensures higher product quality, lower failure rates, and improved long-term reliability.
