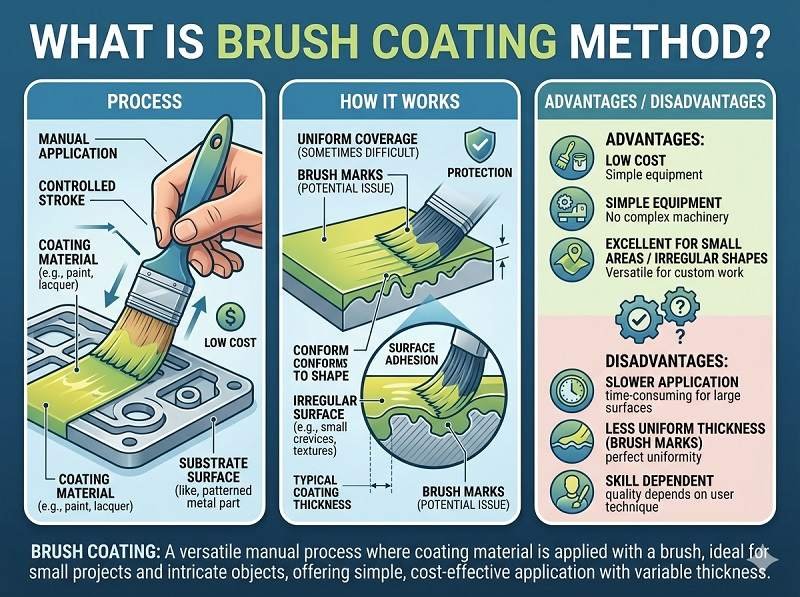

Brush coating method

The brush coating method is a simple and manual technique used to apply Conformal Coating to printed circuit boards during PCB Assembly and SMT Assembly. As the name suggests, it involves using a brush to apply the coating material directly onto specific areas of the PCB.

This method is commonly used for low-volume production, prototyping, rework, or repair applications where precision and flexibility are more important than speed.

How brush coating works

In the brush coating process, an operator dips a clean brush into the liquid Conformal Coating material and carefully applies it onto the PCB surface. The coating is spread evenly across components, solder joints, and exposed traces, forming a protective layer after curing.

Because it is manually controlled, the operator can target specific areas that require protection without coating the entire board.

Advantages of brush coating

High flexibility
Brush coating allows selective application of Conformal Coating, making it ideal for touch-ups, repairs, or partial coating in PCB Assembly.

Low cost
It requires minimal equipment, making it one of the most economical coating methods.

Ideal for prototyping and rework
In SMT Assembly, brush coating is often used when modifying or repairing boards, as it provides precise control over where the coating is applied.

Quick setup
No complex machinery or programming is required, allowing for immediate use.

Limitations to consider

Inconsistent thickness
Since the process is manual, achieving uniform coating thickness can be challenging.

Operator dependency
The quality of the coating heavily depends on the skill and experience of the operator.

Not suitable for mass production
Brush coating is slow and inefficient for large-scale PCB Assembly.

Potential for defects
Brush marks, bubbles, or uneven coverage may occur if not applied carefully.

Applications in PCB Assembly and SMT Assembly

Brush coating is mainly used in:

• Prototype PCB production
• Repair and rework processes
• Small-batch manufacturing
• Selective coating of specific components

It is particularly useful when only certain areas of a PCB require Conformal Coating, rather than full-board protection.

Conclusion

The brush coating method is a practical and cost-effective way to apply Conformal Coating in PCB Assembly and SMT Assembly, especially for low-volume or repair applications. While it lacks the consistency of automated methods, its flexibility and simplicity make it an essential technique in electronics manufacturing.
