Conformal coating affect heat dissipation

In electronics manufacturing, thermal management is a critical factor in ensuring reliability and performance. When applying Conformal Coating in PCB Assembly or SMT Assembly, many engineers wonder whether this protective layer impacts heat dissipation. The answer is yes—but usually only to a limited extent.

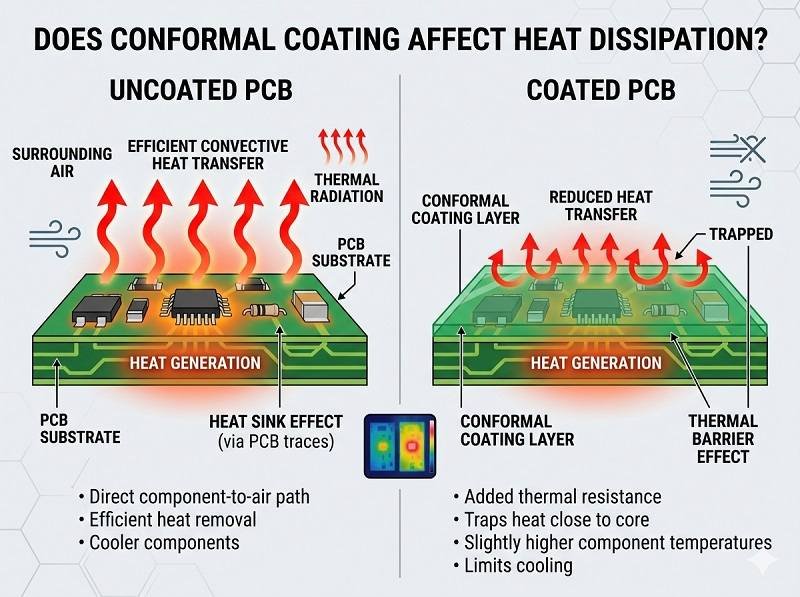

How conformal coating influences heat transfer

Conformal Coating materials such as acrylic, silicone, urethane, and epoxy are generally not designed to be thermally conductive. Most coatings act as thermal insulators rather than heat conductors. When applied over components and traces, they can slightly reduce the efficiency of heat transfer from the PCB surface to the surrounding air.

However, because the coating layer is extremely thin (typically 25–250 microns), its impact on overall heat dissipation is usually minimal in standard applications.

When heat impact becomes significant

In most PCB Assembly projects, the effect of Conformal Coating on heat dissipation is negligible. But in certain situations, it can become more important:

• High-power components generating significant heat
• Dense SMT Assembly layouts with limited airflow
• Designs without proper heat sinks or thermal vias
• Enclosures with poor ventilation

In these cases, even a thin insulating layer can contribute to higher operating temperatures if not properly accounted for during design.

Material selection matters

Different types of Conformal Coating have varying thermal properties:

• Silicone coatings offer better thermal stability and flexibility
• Acrylic coatings are easier to apply and remove but have lower heat resistance
• Epoxy coatings provide strong protection but can trap heat more than others

In advanced Turnkey PCB Assembly, manufacturers may recommend specific coating materials or selective coating techniques to minimize thermal impact.

Best practices to manage heat

To balance protection and thermal performance, consider the following:

• Use heat sinks or thermal pads on high-power components
• Design with proper thermal vias and copper planes
• Apply selective Conformal Coating (avoid coating heat-critical areas)
• Choose coatings with better thermal characteristics when needed

By integrating these strategies into PCB Assembly design, manufacturers can maintain effective heat dissipation while still benefiting from environmental protection.

Conclusion

Conformal Coating does affect heat dissipation, but in most cases, the impact is minimal due to its thin application. For high-power or thermally sensitive designs, careful material selection and design optimization are essential. In professional SMT Assembly and Turnkey PCB Assembly, coating decisions are typically made alongside thermal analysis to ensure both protection and performance are achieved.
