Connectors before coating

Masking connectors is a critical step before applying Rivestimento conforme in Assemblaggio di PCB, Assemblaggio di prototipi di PCB, e Assemblaggio SMT. Connectors, test points, switches, and contact areas must remain free of coating to ensure proper electrical contact and mechanical function. Proper masking prevents defects, reduces rework, and improves overall product reliability.

Why masking is necessary
Conformal coating can insulate electrical contacts and interfere with mating surfaces if applied unintentionally. In Assemblaggio di PCB, masking ensures that connectors remain conductive and accessible after the coating process.

Common masking methods

Masking tapes
Specialized high-temperature masking tapes are widely used to cover connectors and sensitive areas. These tapes are easy to apply and remove, making them ideal for both manual and automated Assemblaggio SMT processes. They are especially useful for flat connector surfaces and edge contacts.

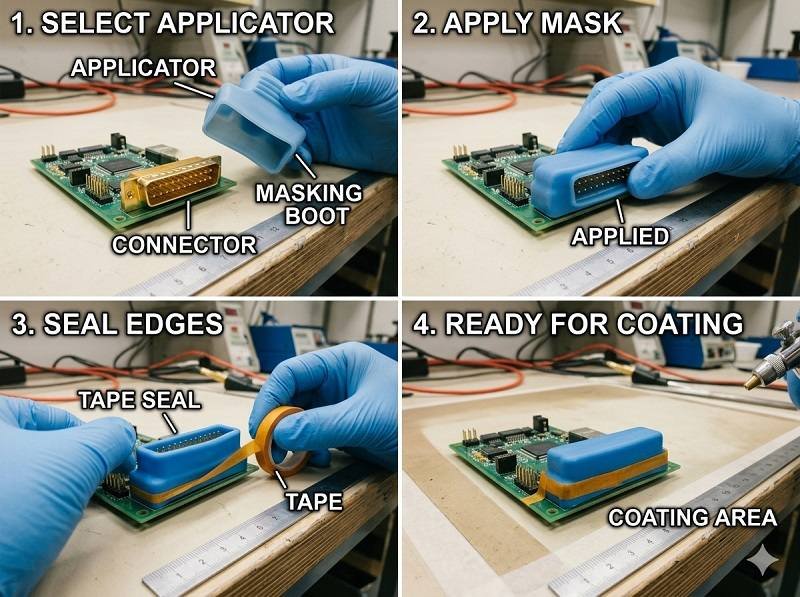

Silicone masking boots and caps
Reusable silicone boots, caps, or plugs are designed to fit over connectors and sockets. They provide precise protection and are commonly used in high-volume Assemblaggio di PCB where consistency is required. Their flexibility allows them to fit tightly without damaging components.

Liquid masking
Liquid mask materials can be brushed or dispensed onto connectors and irregular shapes. Once dried, they form a removable barrier that peels off after coating. In Assemblaggio di prototipi di PCB, liquid masking is often preferred for complex or custom geometries.

Custom masking fixtures
For large-scale production, manufacturers may use custom-designed fixtures or jigs to cover connectors during coating. These ensure repeatability and reduce labor time in automated Assemblaggio SMT lines.

Masking process steps

1. Clean the PCB: Ensure the board is free of dust, oil, and flux residues.
2. Identify areas to protect: Mark connectors, test pads, and keep-out zones.
3. Apply masking materials: Use tape, boots, or liquid mask depending on the design.
4. Inspect masking quality: Ensure complete coverage with no gaps.
5. Apply Conformal Coating: Proceed with coating process.
6. Remove masking: After curing, carefully remove all masking materials.
7. Final inspection: Verify that connectors are clean and fully functional.

Best practices

• Ensure masking materials can withstand curing conditions (heat or UV).
• Avoid leaving adhesive residues on connectors.
• Use precise masking to minimize extra labor during removal.
• Combine masking with selective coating for higher accuracy.

In Assemblaggio di prototipi di PCB, masking methods are often tested and optimized before moving to full production. Proper masking design can significantly improve efficiency and reduce defects in Assemblaggio di PCB e Assemblaggio SMT.

In conclusion, masking connectors before applying Rivestimento conforme is essential to maintain functionality and reliability. By choosing the right masking method and following proper procedures, manufacturers can achieve clean, precise coating results with minimal rework.
