Conformal coating be air dried

Sì, Rivestimento conforme can be air dried, and this is one of the most common curing methods used in Assemblaggio di PCB, Assemblaggio di prototipi di PCB, and even some low-to-medium volume Assemblaggio SMT processes. Air drying relies on natural solvent evaporation at room temperature to form a protective film over the PCB.

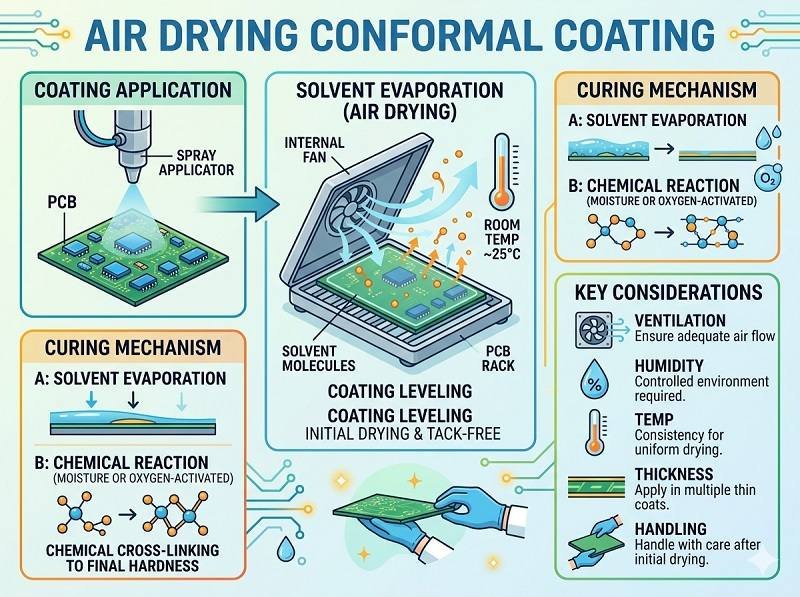

How air drying works
In air-dry systems, the liquid coating contains solvents that evaporate when exposed to ambient conditions. As the solvent evaporates, the coating solidifies and adheres to the PCB surface, forming a thin, protective layer. This method is widely used for acrylic-based Rivestimento conforme materials.

Typical air drying times

• Tack-free time: 10–30 minutes
• Handling time: 30–60 minutes
• Full cure: 12–24 hours

In Assemblaggio di prototipi di PCB, air drying is especially popular because it requires minimal equipment and allows flexible process adjustments.

Advantages of air drying

Simple and cost-effective
No need for ovens or UV systems, making it ideal for small-scale Assemblaggio di PCB or prototyping.

Low thermal stress
Since no high temperatures are involved, sensitive components in Assemblaggio SMT are not exposed to heat.

Easy process integration
Air drying can be easily implemented without significant changes to existing production lines.

Limitations of air drying

Tempo di polimerizzazione più lungo
Compared to UV or thermal curing, air drying is slower, which may reduce production efficiency in high-volume Assemblaggio SMT.

Environmental dependency
Temperature, humidity, and airflow significantly affect drying speed and final coating quality.

Potential for contamination
During the longer drying period, dust or particles may settle on the coating surface if the environment is not controlled.

Not suitable for all coatings
Some materials, such as epoxies or certain silicones, require heat or moisture curing and cannot rely solely on air drying.

Best practices for air drying

• Maintain ambient temperature around 20–25°C
• Ensure good ventilation to speed up solvent evaporation
• Control humidity to avoid defects مثل whitening or poor adhesion
• Keep the environment clean to prevent contamination
• Apply thin, even layers to ensure proper drying

When to use air drying

Air drying is ideal for:

• Assemblaggio di prototipi di PCB and small batch production
• Applications where heat-sensitive components are used
• Cost-sensitive projects with lower throughput requirements

In conclusione, Rivestimento conforme can absolutely be air dried, especially acrylic types. While it offers simplicity and flexibility in Assemblaggio di PCB e Assemblaggio di prototipi di PCB, manufacturers in high-speed Assemblaggio SMT often prefer faster curing methods like UV or thermal curing to improve efficiency.
